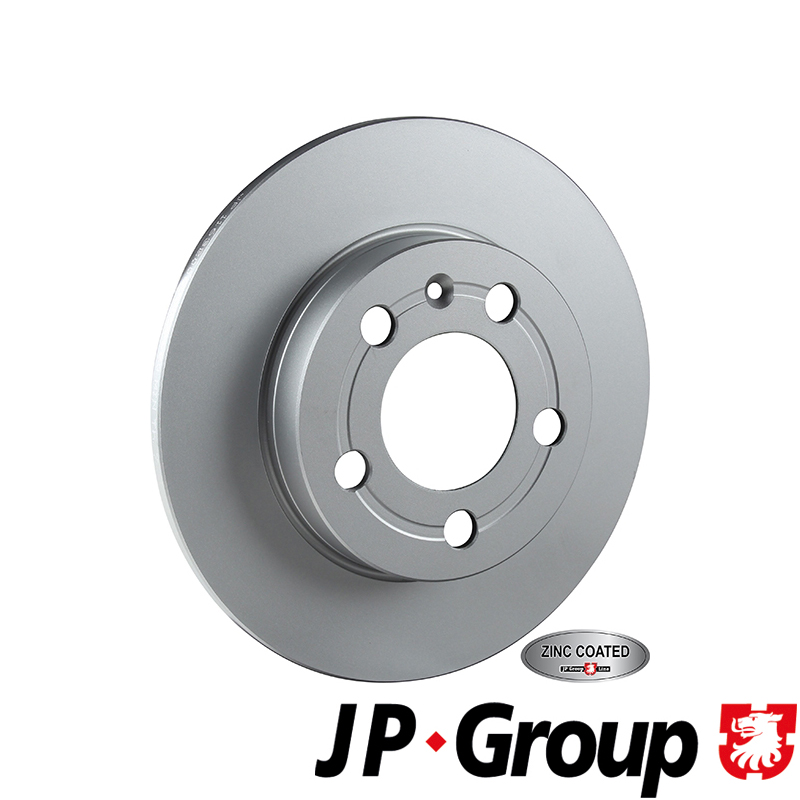

• for PR number: 1KE, 2EG
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 9
• Number of Holes: 5
• Surface: Coated
• Manufacturer: JP GROUP
• Lisainfo: Brake Disc
• Additional information: Brake Disc

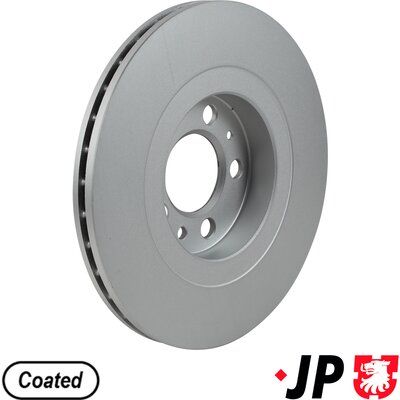

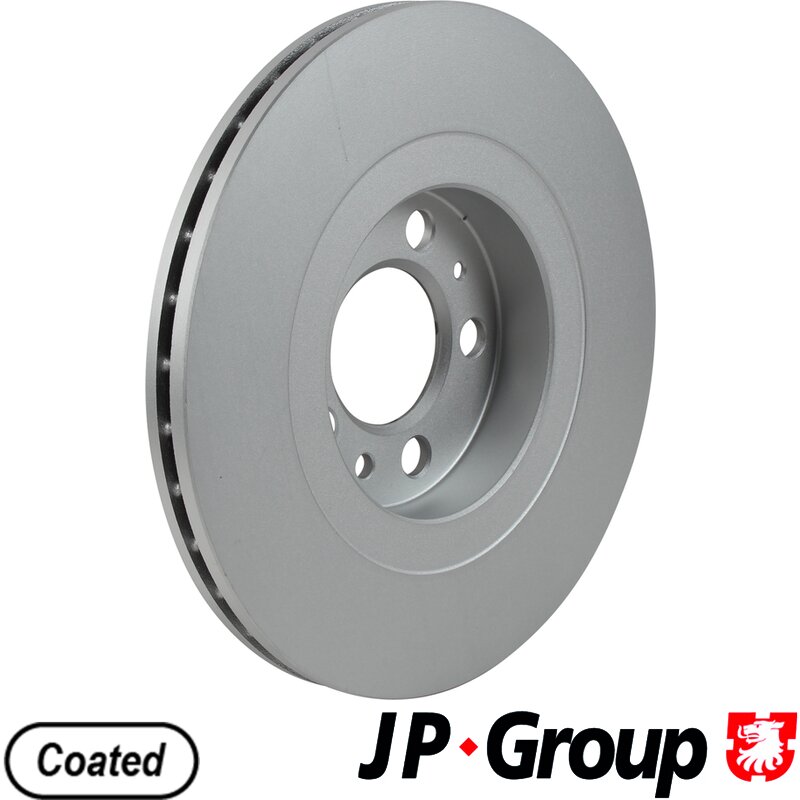

• for PR number: 1LR, 1LS
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Fitting Position: Rear Axle
• for PR number: 1KE
• Brake Disc Type: solid
• Rim Hole Number: 5
• Height [mm]: 33.5
• Brake Disc Thickness [mm]: 9
• Outer Diameter [mm]: 239
• Hub Diameter [mm]: 65
• Manufacturer: JPN

• for PR number: 1KE
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 9
• Outer Diameter [mm]: 239
• Bolt Hole Circle Ø [mm]: 100
• Manufacturer: DELLO AUTOMEGA
• Quantity per packing unit: 2

• for PR number: 1KE, 2EG
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Brake Disc Type: solid
• Height [mm]: 33.4
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• for PR number: 1KE
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Bore Diameter [mm]: 15.8
• Brake Disc Thickness [mm]: 8.9
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 132.5
• Height [mm]: 33.4
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 239
• Manufacturer: DENCKERMANN ZAWIESZENIE
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• for PR number: 1KT
• Braking/Driving Dynamics: for vehicles with ABS
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 39.5
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 9
• Outer Diameter [mm]: 232
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 65
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0967/2516
• Surface: Oiled
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 9
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Height [mm]: 33.5
• Manufacturer: DELPHI HAMULCE

• for PR number: 1KE, 2EG
• Block Separation:
• Brake Disc Thickness [mm]: 9
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 33.4
• Outer Diameter [mm]: 239
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Weight [kg]: 2.671
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• for PR number: 1KE, 2EG
• Block Separation:
• Brake Disc Thickness [mm]: 9
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 33
• Outer Diameter [mm]: 239
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Weight [kg]: 2.7
• Observe service information:
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 9
• Outer Diameter [mm]: 239
• Weight [kg]: 2.67
• Height [mm]: 33.5
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Surface: Coated
• Minimum thickness [mm]: 7
• Name: ALT 128542FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Fitting Position: Rear Axle
• for PR number: 1KE
• Quantity per packing unit: 2
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 9
• Minimum thickness [mm]: 7
• Height [mm]: 33.5
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Hub Diameter [mm]: 142
• Weight [kg]: 2.7
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Diameter [mm]: 232
• Brake Disc Thickness [mm]: 9
• Minimum thickness [mm]: 7
• Number of Holes: 5
• Surface: painted
• Wheel Hub Diameter [mm]: 65
• Outer Diameter [mm]: 232
• General Information: brake disc; rear
• Manufacturer: VIKA

• for PR number: 1KE, 2EG
• Block Separation:
• Brake Disc Thickness [mm]: 9
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 33.4
• Outer Diameter [mm]: 239
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Weight [kg]: 2.671
• Name: SW 30 92 6170
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• for PR number: 1LQ, 1ZF
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Outer Diameter [mm]: 256
• Bolt Hole Circle Ø [mm]: 100
• Manufacturer: DELLO AUTOMEGA
• Quantity per packing unit: 2

• Brake Disc Type: Vented
• Outer Diameter [mm]: 256
• Brake Disc Thickness [mm]: 22
• Fitting Position: Front Axle
• Centering Diameter [mm]: 65
• Height [mm]: 37
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Minimum thickness [mm]: 19
• Name: PIDURIKETAS
• Manufacturer: MAX

• for PR number: 1KE, 2EG
• Quantity per packing unit: 2
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8.9
• Outer Diameter [mm]: 239
• Height [mm]: 33.4
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Surface: painted
• Weight [kg]: 5.7
• Minimum thickness [mm]: 7
• Manufacturer: TOMEX

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 239
• Height [mm]: 33.4
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Wheel Bolt Bore Diameter [mm]: 15.8
• Number of Holes: 5
• Brake Disc Type: solid
• Surface: Zink flake coated
• Supplementary Article/Info 2: with bolts/screws
• Quality: PREMIUM
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

General Information: MEYLE-PD brake disc with high-grade finish and brillant appearance: Modern cutting-edge coating technology for long lasting anti-corrosion protection. No degreasing needed, ready-to-fit. Easy rim disassembly due to coated mounting surfaces.

• Fitting Position: Rear Axle
• for PR number: 1KE, 2EG
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Brake Disc Type: solid
• Minimum thickness [mm]: 7
• Height [mm]: 33.4
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO

• Quantity per packing unit: 2
• Fitting Position: Rear Axle
• Height [mm]: 33.4
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Number of bores: 5
• Outer Diameter [mm]: 239
• Centering Diameter [mm]: 65
• Manufacturer: DRIVE

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 9
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 40
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 230
• Surface: Coated
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 120
• Name: BR 08.7165.11
• Manufacturer: BREMBO
• Quality class: Q

• for PR number: 1LR, 1LS, 1ZM
• Fitting Position: Front Axle
• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 100
• Manufacturer: DELLO AUTOMEGA
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• for PR number: 1LQ, 1ZF
• Minimum thickness [mm]: 19
• Brake Disc Type: Vented
• Bore Diameter [mm]: 15.6
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 133.5
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 256
• Manufacturer: DENCKERMANN HAMULCE
• Quantity per packing unit: 2

• for PR number: 1KK, 1KS, 1KV, 1KQ, 1KW
• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 230
• Brake Disc Thickness [mm]: 9
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• Bolt Hole Circle Ø [mm]: 100
• Height [mm]: 40.6
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 125.8
• Bore Diameter [mm]: 15.6
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Test Mark: E1 90R-02C0165/0960
• Name: PIDURIKETAS
• Manufacturer: ATE
• Quality class: Q

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Centering Diameter [mm]: 65
• Height [mm]: 36.6
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Fitting Position: Front Axle
• Minimum thickness [mm]: 19
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Surface: painted
• Brake Disc Type: solid
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Height [mm]: 33.4
• Number of Holes: 5
• Thread Size: 15,8
• Bolt Hole Circle Ø [mm]: 100
• Colour: black
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM
• Minimum thickness [mm]: 19
• Brake Disc Type: Vented
• Bore Diameter [mm]: 15.6
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 133.5
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 280
• Manufacturer: DENCKERMANN ZAWIESZENIE
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Centering Diameter [mm]: 65
• Height [mm]: 36.6
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Surface: painted
• Minimum thickness [mm]: 19
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• for PR number: 1KE
• Outer Diameter [mm]: 238.9
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Height [mm]: 33.4
• Bolt Hole Circle Ø [mm]: 100
• Brake Disc Type: solid
• Centering Diameter [mm]: 65
• Number of Holes: 5
• Surface: Oiled
• Supplementary Article/Info 2: with bolts/screws
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 15.9
• Name: PIDURIKETAS
• Manufacturer: BOS

• Brake Disc Type: Vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Height [mm]: 34
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Name: PIDURIKETAS
• Manufacturer: MAX

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Block Separation:
• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 36.5
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Weight [kg]: 6
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 9
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 33
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 239
• Surface: Coated
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 120
• Name: BR 08.9148.11
• Manufacturer: BREMBO
• Quality class: Q

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Diameter [mm]: 256
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Width [mm]: 22
• Number of Holes: 5
• Height [mm]: 36.7
• Machining: High-carbon
• Surface: painted
• Wheel Hub Diameter [mm]: 65
• Outer Diameter [mm]: 256
• General Information: brake disc; front; 256*22MM
• Manufacturer: VIKA

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• for article number: LP1514
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0964/2558
• Surface: Oiled
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Height [mm]: 36.5
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3036

• Fitting Position: Front Axle, Front Axle Right, Front Axle Left
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 280
• Brake Disc Type: Vented
• Thread Size: 16
• Height [mm]: 36.6
• Manufacturer: AUTO-GH

• for PR number: 1KE
• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• Bolt Hole Circle Ø [mm]: 100
• Height [mm]: 33.4
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 132.5
• Bore Diameter [mm]: 15.8
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E1 90R-02C0165/1150
• MAPP code available:
• Manufacturer: ATE
• Quality class: Q
• Name: Brake discs

• Fitting Position: Rear Axle
• for PR number: 1KE, 2EG
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Height [mm]: 33.4
• Minimum thickness [mm]: 7
• Surface: Coated
• Inner Diameter [mm]: 131.5
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 15.9
• Packaging length [cm]: 27.8
• Packaging width [cm]: 27.8
• Packaging height [cm]: 8.4
• Weight [kg]: 2.7
• Name: PIDURIKETAS
• Manufacturer: TEX

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Block Separation:
• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 37
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Weight [kg]: 6
• Observe service information:
• Manufacturer: BLUEPRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• for PR number: 1LE, 1LN, 1ZE, 1ZH
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25
• Outer Diameter [mm]: 288
• Bolt Hole Circle Ø [mm]: 100
• Manufacturer: DELLO AUTOMEGA
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• for PR number: 1LE, 1LN, 1ZE, 1ZH
• Minimum thickness [mm]: 22
• Brake Disc Type: Vented
• Bore Diameter [mm]: 15.6
• Brake Disc Thickness [mm]: 25
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 136
• Height [mm]: 34.5
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 288
• Manufacturer: DENCKERMANN ZAWIESZENIE
• Quantity per packing unit: 2

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Block Separation:
• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 36.5
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Weight [kg]: 6
• Name: SW 32 91 7936
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Quantity per packing unit: 2
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Height [mm]: 36.5
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Hub Diameter [mm]: 145
• Weight [kg]: 5.81
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS
• Quantity per packing unit: 2
• Height [mm]: 36.6
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Number of bores: 1
• Outer Diameter [mm]: 280
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Surface: Coated
• Name: SK VKBD80021V2
• Manufacturer: SKF

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Fitting Position: Front Axle
• Outer Diameter [mm]: 280
• Height [mm]: 36.5
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Wheel Bolt Bore Diameter [mm]: 15.6
• Number of Holes: 5
• Brake Disc Type: Vented
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Diameter [mm]: 256
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20
• Number of Holes: 5
• Wheel Hub Diameter [mm]: 65
• Outer Diameter [mm]: 256
• General Information: brake disc; rear
• Manufacturer: VIKA

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Centering Diameter [mm]: 65
• Height [mm]: 36.6
• Number of Holes: 5
• Thread Size: 16
• Bolt Hole Circle Ø [mm]: 100
• Machining: High-carbon
• Colour: black
• Surface: painted
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E190R-02 C0185/0609
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Outer Diameter [mm]: 280
• Weight [kg]: 6.076
• Height [mm]: 37
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Surface: Coated
• Minimum thickness [mm]: 19
• Bore Diameter up to [mm]: 16
• Name: ALT 127949FCAL
• Manufacturer: ALTE AUTOMOTIVE

• for PR number: 1LR, 1LS
• Quantity per packing unit: 2
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Outer Diameter [mm]: 280
• Height [mm]: 36.6
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 100
• Surface: painted
• Weight [kg]: 12.65
• Minimum thickness [mm]: 19
• Manufacturer: TOMEX C

• Fitting Position: Front Axle
• for PR number: 1ZM
• Outer Diameter [mm]: 279.7
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Height [mm]: 36.6
• Bolt Hole Circle Ø [mm]: 100
• Brake Disc Type: Vented, internally vented
• Centering Diameter [mm]: 65
• Number of Holes: 5
• Surface: Coated
• Machining: High-carbon
• Supplementary Article/Info 2: with bolts/screws
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 15.7
• Name: PIDURIKETAS
• Manufacturer: BOS
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid, slotted
• Brake Disc Thickness [mm]: 9
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 40
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 230
• Surface: Coated
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO

Brief Information: For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Brake Disc Type: Vented, slotted/perforated
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Centering Diameter [mm]: 65
• Height [mm]: 36.6
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 100
• Surface: painted
• Minimum thickness [mm]: 19
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Front Axle
• for PR number: 1LQ, 1ZF
• Minimum thickness [mm]: 8
• Brake Disc Type: Vented, Perforated
• Bore Diameter [mm]: 15.6
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 133.5
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 256
• Manufacturer: DENCKERMANN HAMULCE
• Quantity per packing unit: 2

• for PR number: 1KE
• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 8.9
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• Bolt Hole Circle Ø [mm]: 100
• Height [mm]: 33.4
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 132.5
• Bore Diameter [mm]: 15.8
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E1 90R-02C0859/1217
• MAPP code available:
• Name: PIDURIKETAS
• Manufacturer: ATE

General Information: Sure Thing, ATE! The PowerDisc shows what it can do. Looks better - wears less The brake disc with a profile pays off: The cleaning effect of the continuous groove ensures more even wear of the brake disc and a marked reduction in the scoring that can occur on both brake disc and brake pads. Score-free wear even in heavy-duty use extends the life of the brake discs - and also offers better looks, particularly for wheel rims of today's modern and open style. The multipurpose groove permits visual detection of wear at a glance, without awkward, time-consuming and expensive removal or special measuring tools. If the entire groove has been worn away, the brake disc has reached its thickness limit and must be replaced. The high temperatures generated during braking result in gases between the brake disc and brake pad. These gases c onsiderably impair the braking effect (fading). The PowerDisc channels off the gases via the multifunctional groove and in so doing ensures dependable braking. This brake disc has been thought out down to the last detail : Conventional brake discs have to be cleaned before assembly in an often very expensive and time consuming process using environmentally harmful agents. Poor cleaning often causes permanent impairment of the friction between the brake pads and the brake disc. The new corrosion protection on the ATE PowerDisc, however, no longer has to be removed before assembly and so remains on the brake disc. Protected and sealed in this way, the ATE PowerDisc is less prone to rust, shortens the installation time, and helps protect the enviro nment. Many benefits - thanks to corrosion protection The ATE PowerDisc is certified for general use in Germany (ABE) - i.e. no entry in the vehicle documents is needed. That saves you time and money. Braking like the professionals The complete range Greater safety and longer life make the ATE PowerDisc a disc that could well be a big success, which you can have installed by your garage right away. And if you have any other questions to do with brakes and the ATE product range, your friendly brake expert there will only be too glad to help you. Our ATE PowerDisc has already been proven in many long-distance racing events and touring car championships. And with its outstanding braking characteristics on both dry and wet surfaces, it's the ideal choice for the New Beetle and Lupo Cups, and in the Formula König and Formula 3. Everything's in favour of the ATE PowerDisc: Water and dirt can considerably reduce the effectiveness of the brake pads. Our answer is: the innovative ATE PowerDisc, the only brake disc with a continuous multipurpose groove, which channels off water, dirt and the gases generated between the brake disc and the brake pads by high temperatures during braking, rather like the tread of a tyre does. This considerably increases your safety, reduces scoring, and extends the life of the brake disc. And besides braking so well, it looks better for a longer pe riod. The ATE PowerDisc with multipurpose groove has clear advantages: - general certification (ABE) - better response in wet conditions - shorter running-in period for the newly fitted pad and dis c - better appearance - wear detection - improved corrosion protection Technical Information: For vehicles without ABS, a PowerDisc can be used on the rea r axle only if there is one on the front axle. The General Operating Permit (ABE) for the PowerDisc applies to operation on German roads in accordance with the German Road Traffic Registration Ordinance (StVZO). Other countries may require additional type approvals for use on roads.

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid, slotted
• Brake Disc Thickness [mm]: 9
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 33
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 239
• Surface: Coated
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 08.9148.75

Brief Information: For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.

• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Quantity per packing unit: 2
• Rim Hole Number: 5
• Fitting Position: Front Axle
• Height [mm]: 36.5
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Outer Diameter [mm]: 280
• Number of Holes: 1
• Centering Diameter [mm]: 65
• Manufacturer: DRIVE

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Brake Disc Type: Externally Vented
• Minimum thickness [mm]: 19
• Height [mm]: 36.6
• Bolt Hole Circle Ø [mm]: 100
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20
• Number of Holes: 5
• Wheel Hub Diameter [mm]: 65.1
• Outer Diameter [mm]: 280
• General Information: brake disc; front
• Manufacturer: VIKA

• Fitting Position: Rear Axle
• for PR number: 1KE
• Quantity per packing unit: 2
• Test Mark: E1 90R-02C0100/1552
• Brake Disc Type: solid
• Number of Holes: 5
• Supplementary Article/Info 2: without ABS sensor ring, without wheel bearing
• Machining: Untreated
• Outer Diameter [mm]: 239
• Brake Disc Thickness [mm]: 9
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 65
• Height [mm]: 34
• Quality class: PJ
• Name: Brake discs

• for PR number: 1LQ, 1ZF
• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 256
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Bolt Hole Circle Ø [mm]: 100
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 133.5
• Bore Diameter [mm]: 15.6
• Test Mark: E1 90R-02C0118/0141
• Name: PIDURIKETAS
• Manufacturer: ATE

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM, 1ZP
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 37
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 280
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 19
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 09.7012.11
• Quality class: Q

• Fitting Position: Front Axle
• for PR number: 1LR, 1LS, 1ZM
• Minimum thickness [mm]: 19
• Brake Disc Type: Vented, Perforated
• Bore Diameter [mm]: 15.6
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 100
• Number of Holes: 5
• Inner Diameter [mm]: 133.5
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 280
• Manufacturer: DENCKERMANN HAMULCE
• Quantity per packing unit: 2

• for PR number: 1LR, 1LS, 1ZM
• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 280
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Bolt Hole Circle Ø [mm]: 100
• Height [mm]: 36.7
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 133.5
• Bore Diameter [mm]: 15.6
• Test Mark: E1 90R-02C0118/0479
• Name: PIDURIKETAS
• Manufacturer: ATE
