• Engine Code: RD28T
• Filter type: Spin-on Filter
• Outer Diameter 2 [mm]: 97
• Inner Diameter 2 [mm]: 73
• Thread Size: 3/4-16 UNF
• Height [mm]: 130
• Manufacturer: KOLBENSCHMIDT

• Filter type: Spin-on Filter
• Inner Diameter 1 [mm]: 57
• Outer Diameter 2 [mm]: 100
• Inner Diameter 2 [mm]: 63
• Thread Size 1: M36 x 1,5
• Thread Size: 3/4-16 UNF
• Height [mm]: 138
• Manufacturer: KOLBENSCHMIDT

• Filter type: Spin-on Filter
• Length [mm]: 125
• Outer Diameter [mm]: 97
• Fitted Diameter [mm]: 73
• Internal Thread [mm]: 3/4 x 16
• Manufacturer: ASHIKA

• Filter type: Spin-on Filter
• Length [mm]: 144
• Outer Diameter [mm]: 99
• Fitted Diameter [mm]: 73
• Internal Thread [mm]: IN : 3/4 X 16 / OUT
• Manufacturer: ASHIKA
• Lisainfo: 30-01-109
• Additional information: 30-01-109

• Filter type: Spin-on Filter
• Length [mm]: 125
• Outer Diameter [mm]: 97
• Fitted Diameter [mm]: 73
• Internal Thread [mm]: 3/4 x 16
• Manufacturer: JAPKO

• Filter type: Spin-on Filter
• Length [mm]: 144
• Outer Diameter [mm]: 99
• Fitted Diameter [mm]: 73
• Internal Thread [mm]: IN : 3/4 X 16 / OUT
• Manufacturer: JAPKO

• Filter type: In-Line Filter
• Height [mm]: 155
• Inner Diameter [mm]: 62
• Outer Diameter [mm]: 93
• Inner Diameter 1 [mm]: 71
• Entry Thread Size: M36X1.5
• Exit Thread Size: 3/4-16UNF
• Manufacturer: DENCKERMANN FILTRY

• Filter type: Spin-on Filter
• Manufacturer: JPN

• Quantity per packing unit: 20
• Filter type: Spin-on Filter
• Height [mm]: 140
• Entry Thread Size: 3/4-16 UNF
• Exit Thread Size: M 36 X 1,5
• Outer Diameter [mm]: 93
• Inner Diameter 2 [mm]: 56
• Inner Diameter 1 [mm]: 63
• Manufacturer: SCT MANNOL

• Filter type: Filter Insert
• Height [mm]: 140
• Thread Size: 3/4"-16
• Outer Diameter [mm]: 97
• Quality class: PJ
• Name: Fuel filter

• Thread Size: UNF 3/4'-16
• Filter type: Filter Insert
• Height [mm]: 140
• Outer Diameter [mm]: 97
• Name: BM FE0799
• Manufacturer: BREMSI

• Filter type: Spin-on Filter
• Height [mm]: 150
• Outer Diameter [mm]: 93
• Internal Thread Size: 3/4" - 16 UNF
• Weight [kg]: 0.51
• Supplementary Article/Info 2: with seal ring
• Observe service information:
• Manufacturer: BLUE PRINT
• Lisainfo: ADN12310 BLUEPRINT
• Additional information: ADN12310 BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Height [mm]: 141
• Outer Diameter [mm]: 98
• Packing Type: Carton
• Filter type: Spin-on Filter
• Thread Size 1: 3/4"-16
• Thread Size 2: M 36 x 1.5
• Packaging length [cm]: 9.9
• Packaging width [cm]: 9.9
• Packaging height [cm]: 15
• Sealing Ring Diameter from [mm]: 64
• Sealing Ring Diameter up to [mm]: 72
• Name: CH CFF100145
• Manufacturer: CHAMPION

• Engine Code: RD28T
• Filter type: Spin-on Filter
• Height [mm]: 141
• Outer Diameter [mm]: 94
• Inner Diameter 1 [mm]: 73
• Inner Diameter 2 [mm]: 64
• Entry Thread Size: M36x1.5
• Exit Thread Size: UNF 3/4"-16
• Manufacturer: VALEO
• Name: VA 587702

• Diameter [mm]: 98
• Material: Plastic
• Filter type: Spin-on Filter
• Height [mm]: 138
• Manufacturer: DELPHI
• Name: DE HDF523

• Construction Year to: 11.1995
• Filter type: Spin-on Filter
• Height [mm]: 145
• Thread Size: M 36x1,5, UNF 3/4"-16
• Outer Diameter [mm]: 94
• Inner Diameter 1 [mm]: 72
• Inner Diameter 2 [mm]: 64
• Manufacturer: PROFIPOWER

• Vehicle type: Patrol GR, Safari
• Block Separation:
• Construction Year from: 09.1993
• Filter type: Filter Insert
• Height [mm]: 139
• Outer Diameter [mm]: 87
• Diameter 3 [mm]: 67
• Diameter 4 [mm]: 72
• Thread Size 1: 3/4"-16
• Thread Size 2: M36x1,5
• Manufacturer: PURFLUX

• Vehicle type: Patrol GR, Safari
• Block Separation:
• Construction Year from: 09.1993
• Filter type: Filter Insert
• Height [mm]: 139
• Outer Diameter [mm]: 87
• Diameter 3 [mm]: 67
• Diameter 4 [mm]: 72
• Thread Size 1: 3/4"-16
• Thread Size 2: M36x1,5
• Name: Fuel filter
• Quality class: PJ

Lisainfo: "Tootja: COOPERSFIAAM FILTERS
ATLAS PLATFORMA / PO
(kvaliteediklass: PJ)" Additional information: "Tootja: COOPERSFIAAM FILTERS
ATLAS PLATFORMA / PO
(kvaliteediklass: PJ)"

• Filter type: Spin-on Filter
• Height [mm]: 145
• Thread Size: 3/4-16 UNF
• Outer Diameter 1 [mm]: 94
• Thread Size 1: M36x1.5
• Inner Diameter 1 [mm]: 72
• Inner Diameter 2 [mm]: 64
• SVHC: No SVHC present!
• Manufacturer: FILTRON

• Fitting Position: Front Axle
• Brake Type: Disc Brake
• Length [mm]: 142
• Height [mm]: 53.3
• Thickness [mm]: 15.9
• WVA Number: 20972
• Test Mark: ECE R90 APPROVED
• Manufacturer: ASHIKA

• Filter type: Spin-on Filter
• Diameter [mm]: 88
• Height [mm]: 141
• Thread Size: 3/4"-16UNF-2B
• Diameter 2 [mm]: 73.5
• Sealing Ring Diameter [mm]: 66.5
• Tightening Torque [Nm]: 14
• Packaging length [cm]: 10
• Packaging width [cm]: 10
• Packaging height [cm]: 14
• Net Weight [g]: 501
• Manufacturer: FILTRY KNECHT / MAHLE
• Name: KN KC67
• Lisainfo: KC 67 MAH
• Additional information: KC 67 MAH

• Fitting Position: Front Axle
• Width [mm]: 142.1
• Thickness [mm]: 16.5
• Height [mm]: 53.5
• Brake System: Sumitomo
• Manufacturer: DENCKERMANN HAMULCE

Wear Warning Contact: not prepared for wear warning indicator, excl. wear warning contact

• Filter type: Spin-on Filter
• Diameter [mm]: 90
• Outer Diameter 1 [mm]: 97
• Height [mm]: 145
• Exit Thread Size: 3/4" 16 UNF
• Manufacturer: BOSCH
• Name: BS 1457434281

• Outer Diameter 1 [mm]: 60
• Width 1 [mm]: 48
• Manufacturer: SNR /NTN-SNR/
• Name: SN GT368.03

• Filter type: Spin-on Filter
• Diameter [mm]: 88
• Height [mm]: 141
• Thread Size: 3/4"-16UNF-2B
• Diameter 2 [mm]: 73.5
• Sealing Ring Diameter [mm]: 66.5
• Tightening Torque [Nm]: 14
• Packaging length [cm]: 10
• Packaging width [cm]: 10
• Packaging height [cm]: 14
• Net Weight [g]: 501
• Manufacturer: MAHLE KNECHT

• Vehicle configuration line / variant: TENS
• Belt Pulley Ø [mm]: 60
• Height 1 [mm]: 33
• Height 2 [mm]: 37
• Weight [kg]: 0.3
• Name: DA ATB2135
• Manufacturer: DAYCO

• Fitting Position: Front Axle
• Thickness [mm]: 16.5
• Test Mark: R90
• Width [mm]: 142
• Height [mm]: 53
• Manufacturer: KAVO PARTS

• Brake System: Sumitomo
• Fitting Position: Front Axle
• Quantity per packing unit: 4
• Height 1 [mm]: 53.5
• Wear Warning Contact: excl. wear warning contact
• Vibration: without vibration damper
• Width 1 [mm]: 142
• Thickness 1 [mm]: 16.5
• Manufacturer: METELLI UKL.HAMULCOWY

• Filter type: Spin-on Filter
• Outer Diameter [mm]: 89.5
• Thread Size: 3/4-16 UNF
• Height [mm]: 135
• Manufacturer: HENGST FILTER

• Construction Year to: 09.1994
• for model code: Y60A

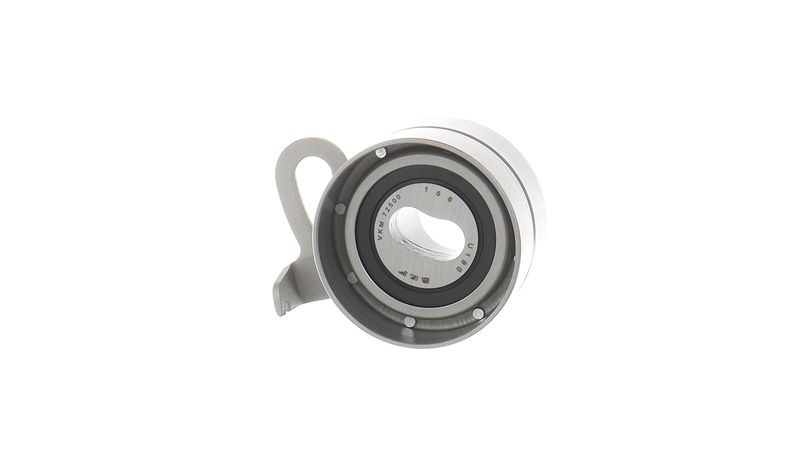

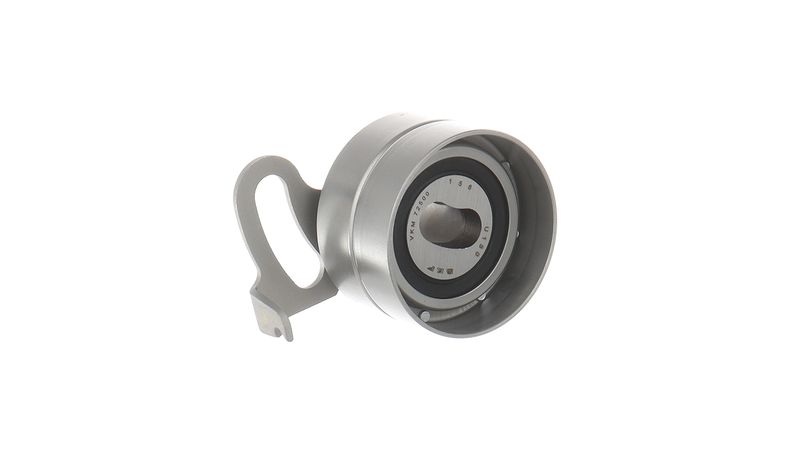

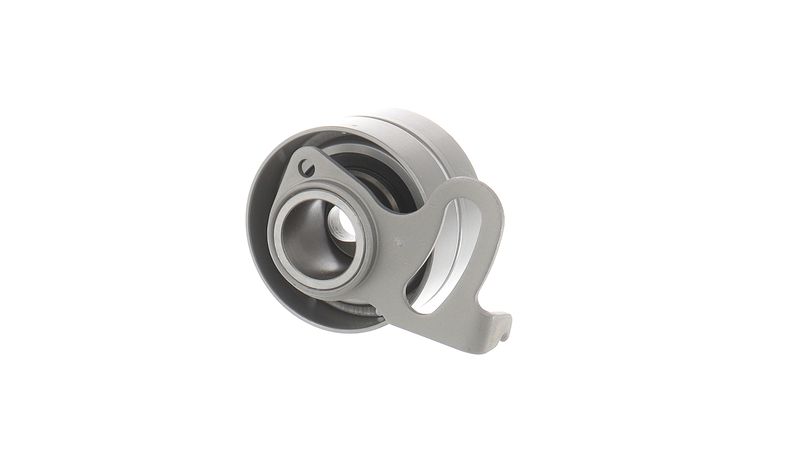

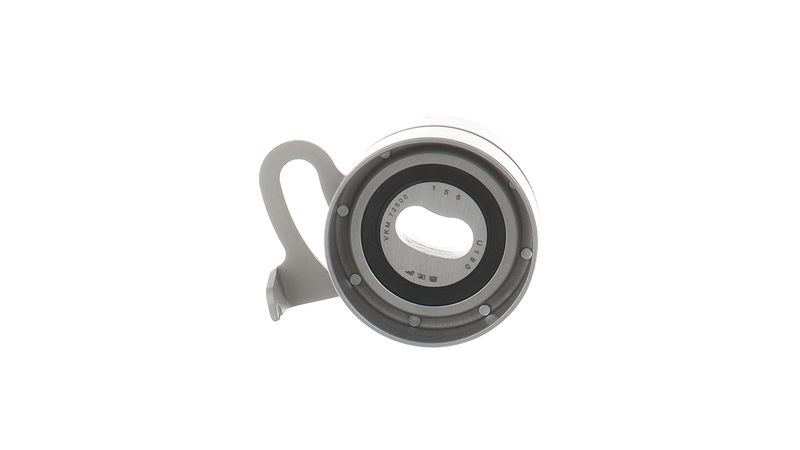

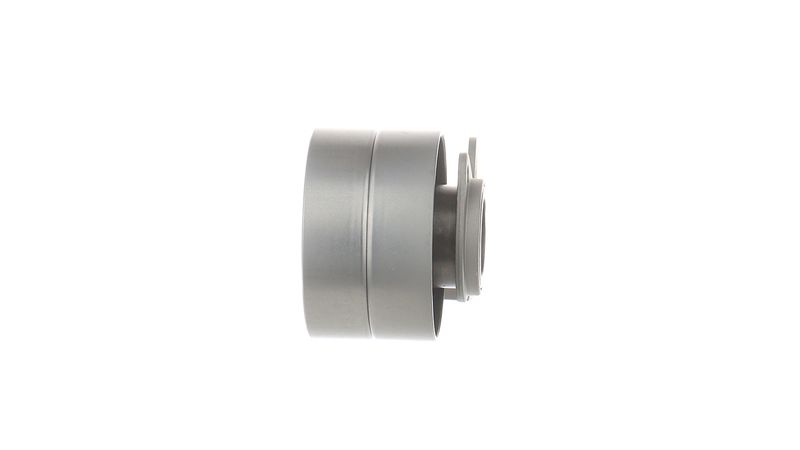

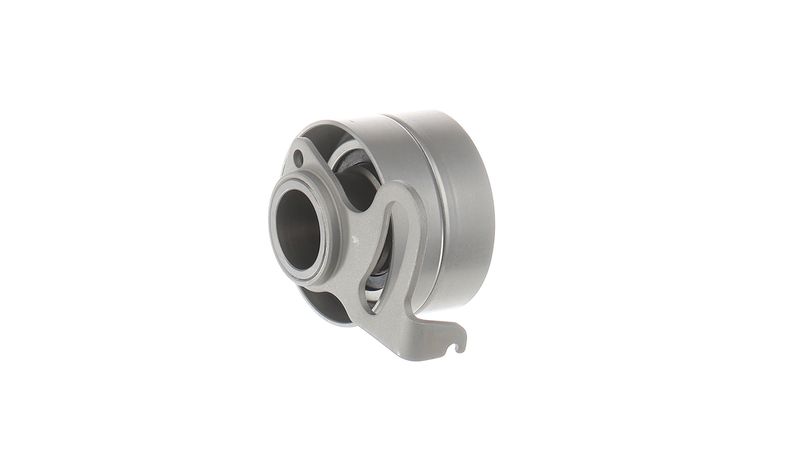

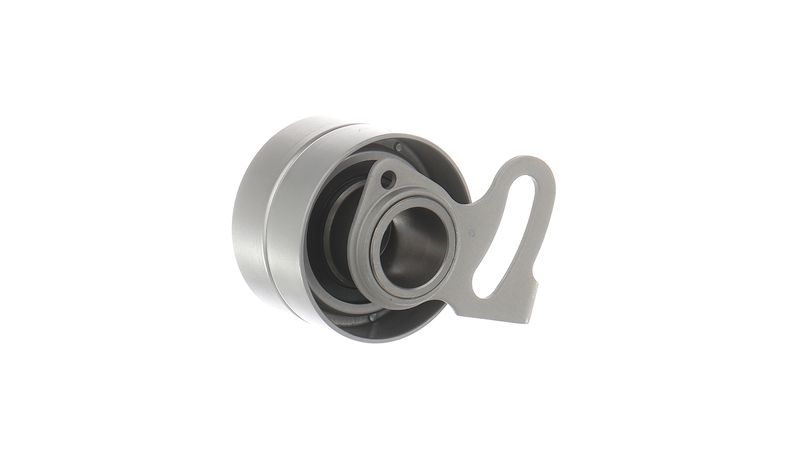

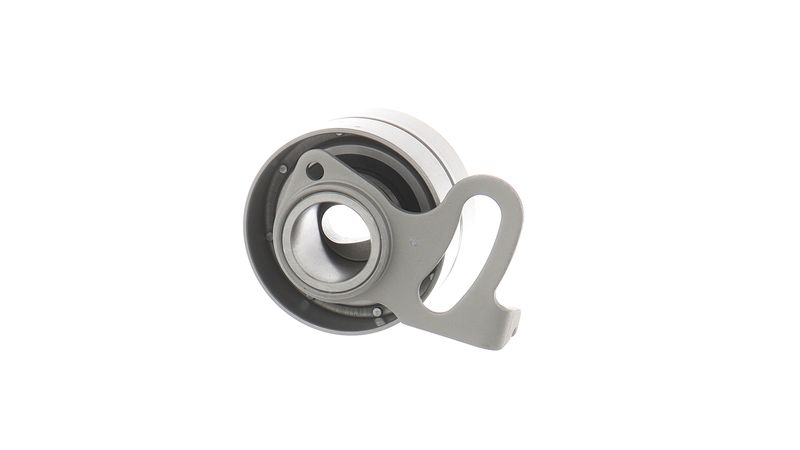

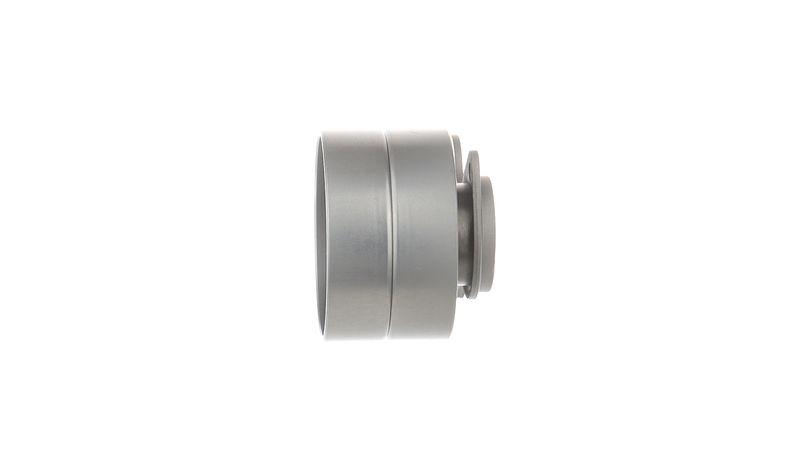

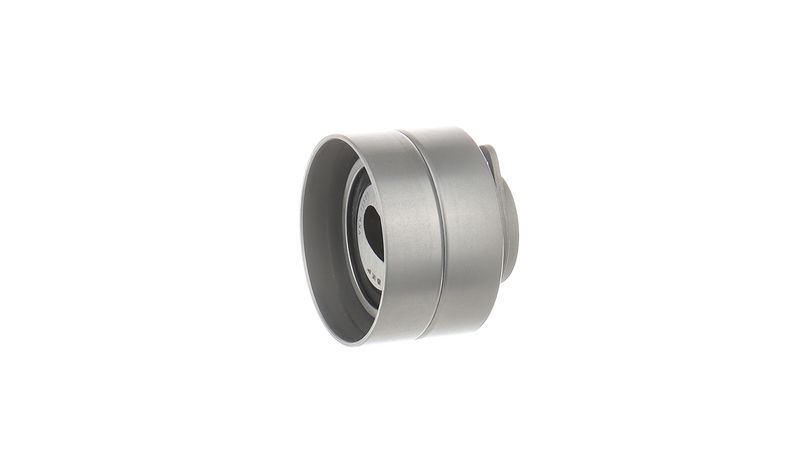

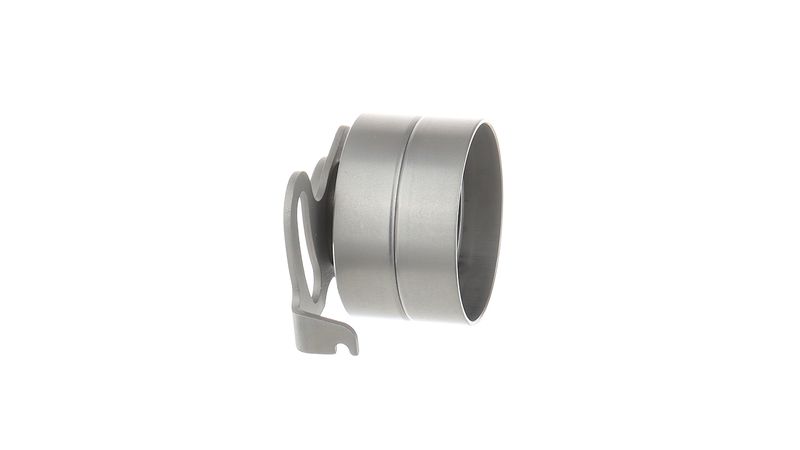

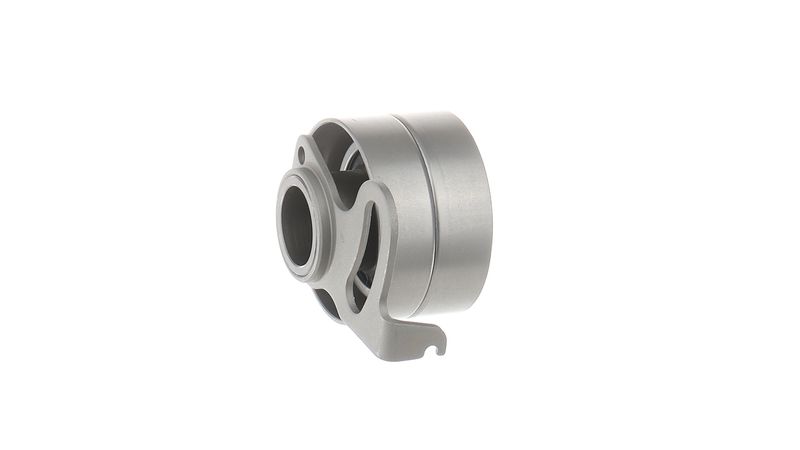

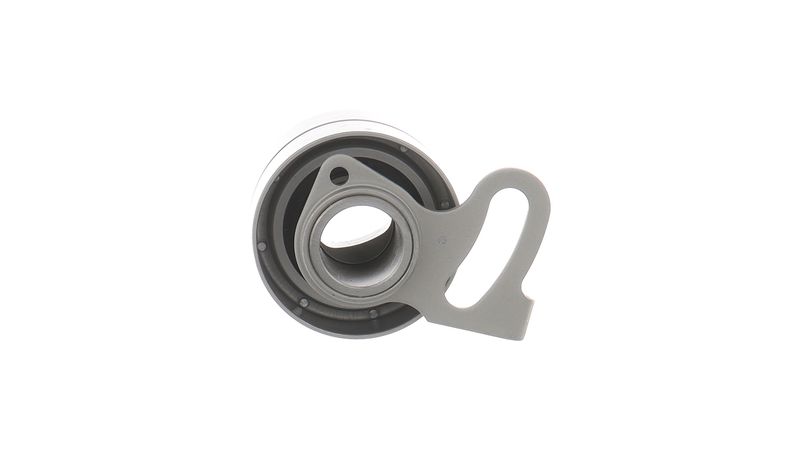

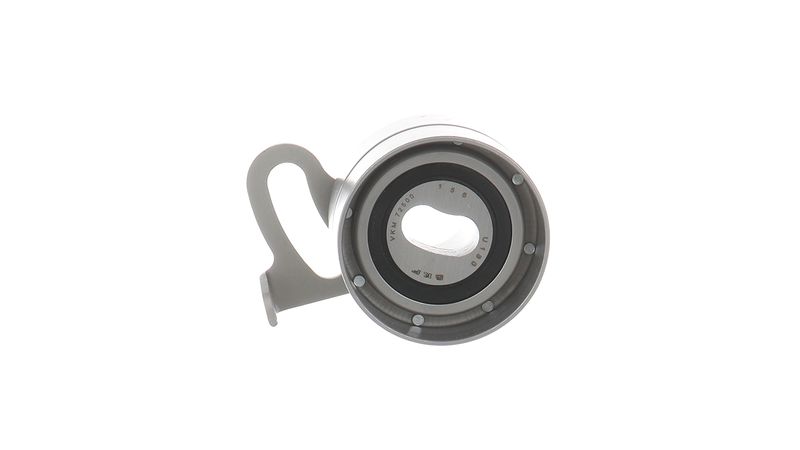

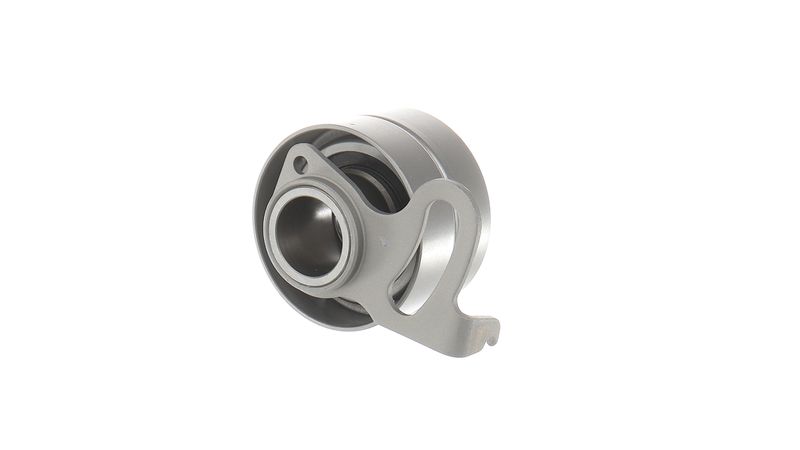

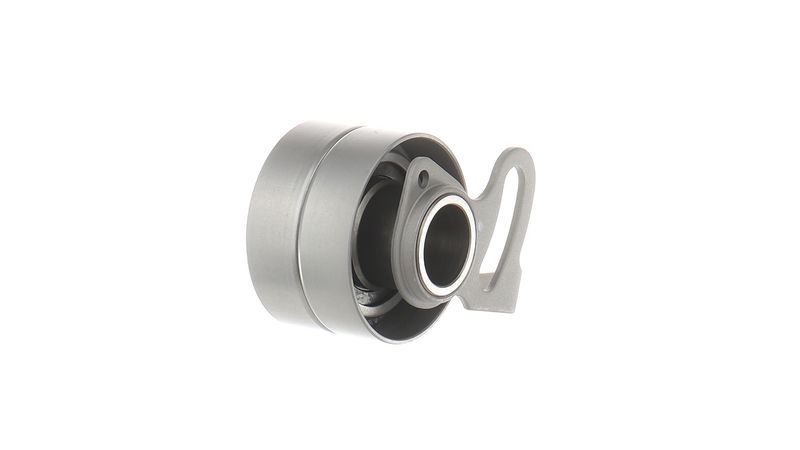

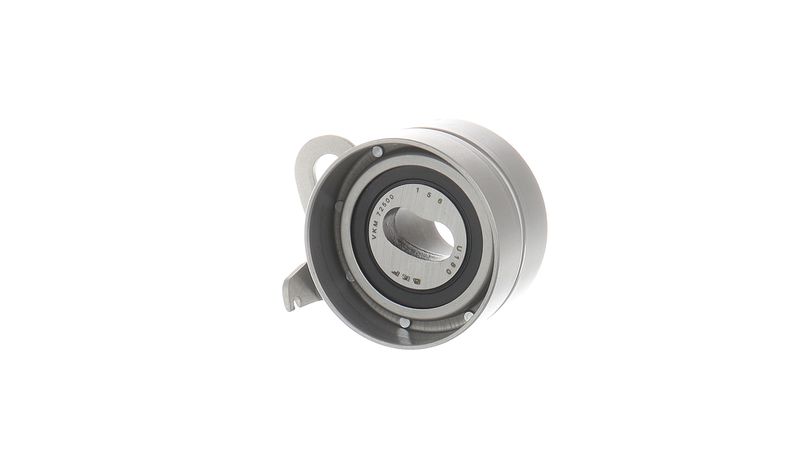

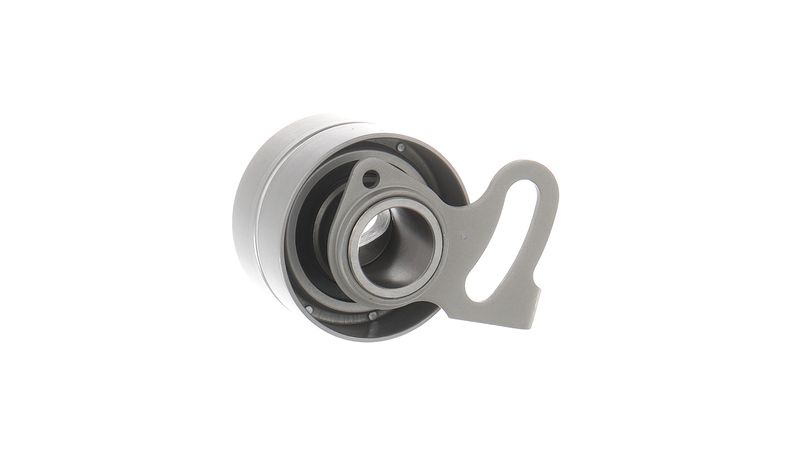

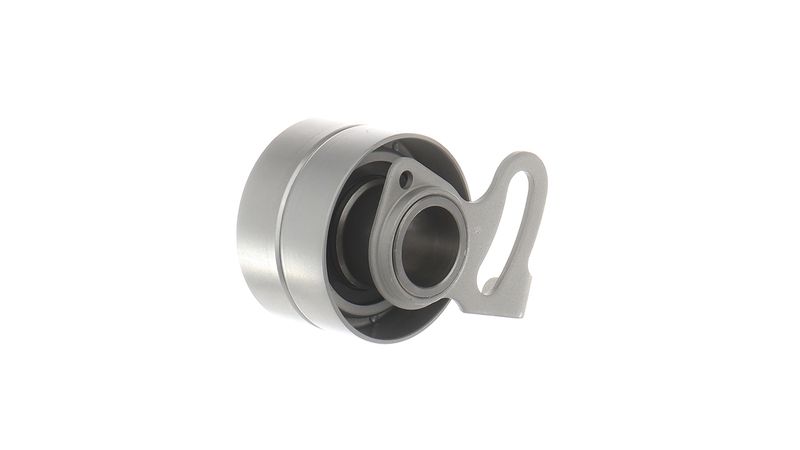

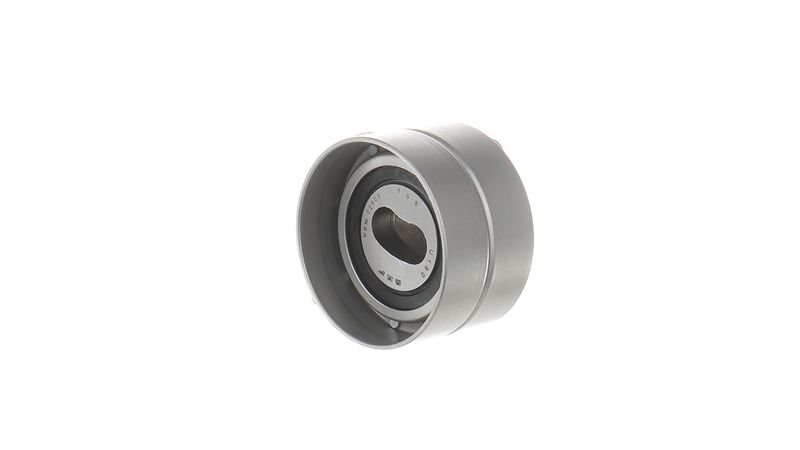

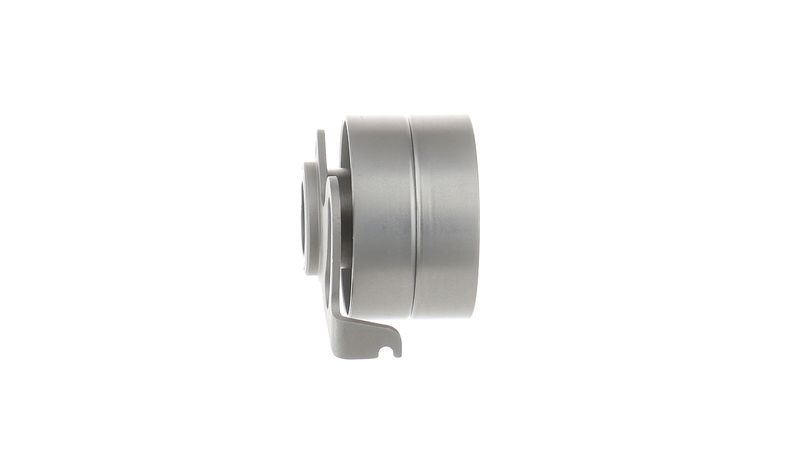

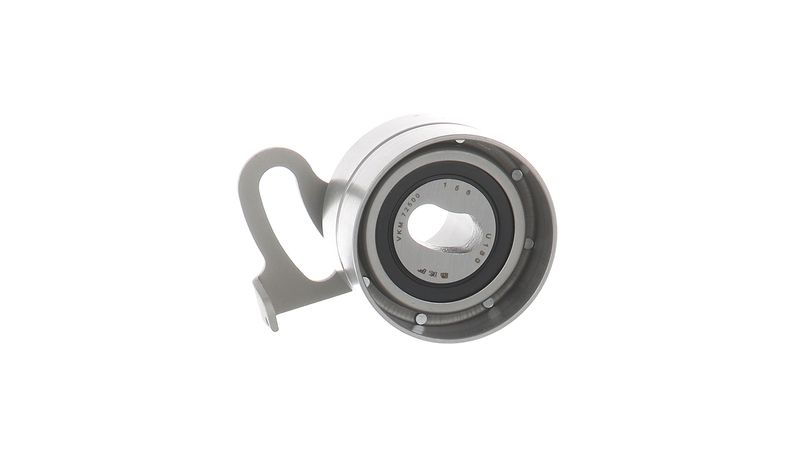

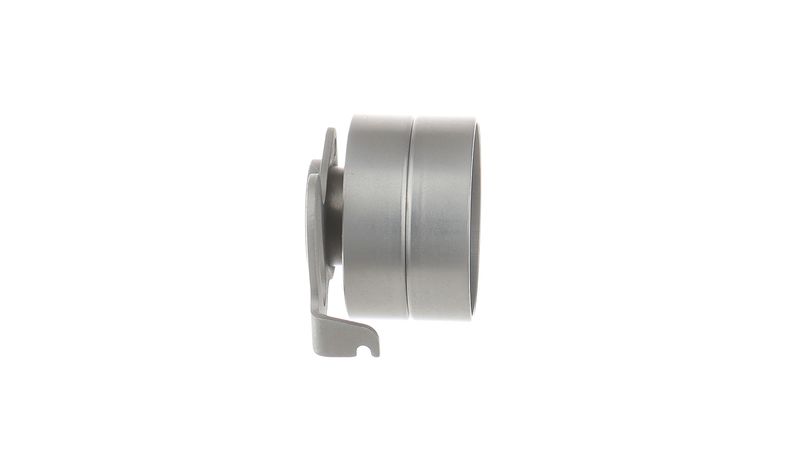

• Diameter [mm]: 60
• Width [mm]: 37

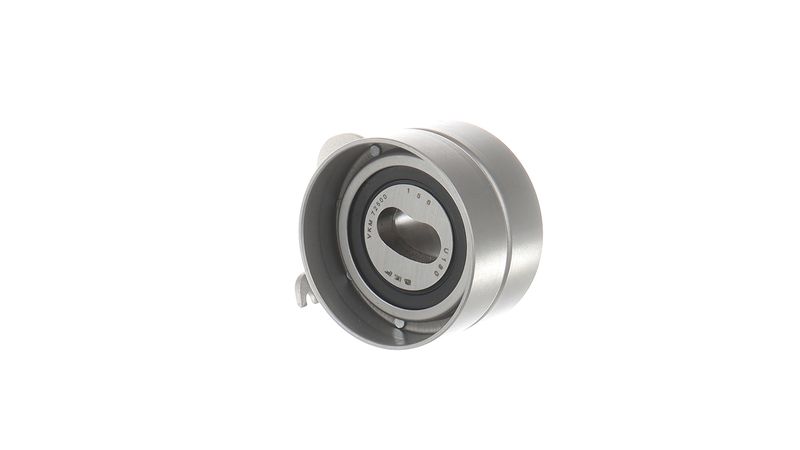

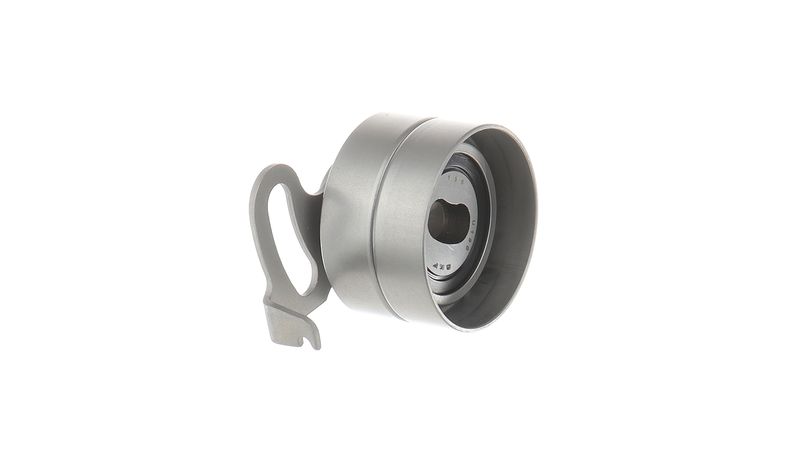

• Tensioner Pulley Actuation: Manual
• Manufacturer: SKF
• Name: SK VKM72500

• Driven Units: Camshaft
• Vehicle configuration line / variant: 09/94>
• Number of Teeth: 149
• Width [mm]: 30
• Manufacturer: DAYCO
• Name: DA 94841

• Brake System: Akebono
• Fitting Position: Rear Axle
• Quantity per packing unit: 4
• Height 1 [mm]: 50.5
• Wear Warning Contact: excl. wear warning contact
• Vibration: with vibration damper
• Width 1 [mm]: 127.8
• Thickness 1 [mm]: 17
• Manufacturer: METELLI UKL.HAMULCOWY

• Quantity per packing unit: 4
• Fitting Position: Front Axle
• Thickness [mm]: 17
• Width [mm]: 142
• Height [mm]: 53.5
• Brake System: SUMITOMO
• Weight [kg]: 1.53
• Manufacturer: TOMEX

• Length [mm]: 142
• Width [mm]: 53
• Test Mark: ECE R90 Approved
• Fitting Position: Front Axle
• Thickness 1 [mm]: 17
• Weight [kg]: 1.44
• Observe service information:
• Manufacturer: BLUE PRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Driven Units: Camshaft
• Vehicle configuration line / variant: >09/94
• Number of Teeth: 149
• Width [mm]: 30
• Manufacturer: DAYCO PASKI

• Length [mm]: 142
• Width [mm]: 53
• Test Mark: ECE R90 Approved
• Fitting Position: Front Axle
• Thickness 1 [mm]: 17
• Weight [kg]: 1.53
• Observe service information:
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Thickness [mm]: 16.2
• Test Mark: R90
• Width [mm]: 128
• Height [mm]: 51
• Manufacturer: KAVO PARTS

• Fitting Position: Rear Axle
• Brake Type: Disc Brake
• Length [mm]: 127.6
• Height [mm]: 50.7
• Thickness [mm]: 16.5
• WVA Number: 20098
• Test Mark: ECE R90 APPROVED
• Manufacturer: ASHIKA

• Fitting Position: Rear Axle
• Brake Type: Disc Brake
• Length [mm]: 127.6
• Height [mm]: 50.7
• Thickness [mm]: 16.5
• WVA Number: 20098
• Test Mark: ECE R90 APPROVED
• Manufacturer: JAPKO

• Construction Year to: 11.1995
• Engine Code: RD28T
• Height [mm]: 145
• Fuel Type: Diesel
• Filter type: Filter Insert
• Outer Diameter [mm]: 94
• Thread Size: UNF 3/4"-16
• Manufacturer: MAGNETI MARELLI

• Length [mm]: 128
• Width [mm]: 51
• Test Mark: ECE R90 Not Required
• Fitting Position: Rear Axle
• Thickness 1 [mm]: 19
• Weight [kg]: 1.71
• Observe service information:
• Manufacturer: BLUE PRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Quantity per packing unit: 4
• Manufacturer Restriction: SUMITOMO
• Wear Warning Contact: not prepared for wear warning indicator
• Height [mm]: 53.5
• Width [mm]: 142
• Thickness [mm]: 17
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Vehicle type: Patrol GR
• Width 1 [mm]: 127.8
• Height 1 [mm]: 50.5
• Thickness 1 [mm]: 19
• Brake System: AKEBONO
• Wear Warning Contact: without integrated wear sensor
• Weight [kg]: 1.3
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Front Axle
• Width [mm]: 142.1
• Height [mm]: 53.5
• Thickness [mm]: 16.5
• Brake System: Sumitomo
• Test Mark: E9 90R-02A0279/3377
• MAPP code available:
• Article number of recommended accessories: 13.0460-0448.2
• Observe dimensions:
• Manufacturer: ATE

Wear Warning Contact: not prepared for wear warning indicator, excl. wear warning contact

• Fitting Position: Front Axle
• Width [mm]: 142
• Height [mm]: 53
• Thickness [mm]: 17.2
• Wear Warning Contact: not prepared for wear warning indicator
• WVA Number: 20863
• Brake System: Lucas
• Packaging length [cm]: 15.2
• Packaging width [cm]: 8.8
• Packaging height [cm]: 8.4
• Weight [kg]: 1.4
• Manufacturer: TEXTAR

• Construction Year from: 06.1995
• Vehicle type: Patrol GR
• Driven Units: Camshaft
• Number of Teeth: 149
• Packaging length [cm]: 25.5
• Packaging width [cm]: 16
• Packaging height [cm]: 3
• Weight [kg]: 0.252
• Width [mm]: 30
• Tooth Pitch [mm]: 9.525
• Manufacturer: CONTITECH

• Fitting Position: Rear Axle
• Quantity per packing unit: 4
• Manufacturer Restriction: SUMITOMO
• Wear Warning Contact: not prepared for wear warning indicator
• Height [mm]: 50.5
• Width [mm]: 127.8
• Thickness [mm]: 19
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Construction Year to: 05.1995
• Vehicle type: Patrol GR
• Driven Units: Camshaft
• Number of Teeth: 149
• Packaging length [cm]: 25.5
• Packaging width [cm]: 16
• Packaging height [cm]: 3
• Weight [kg]: 0.23
• Width [mm]: 30
• Tooth Pitch [mm]: 9.525
• Manufacturer: CONTITECH

• Width [mm]: 36
• Outer Diameter [mm]: 60
• Weight [kg]: 0.35
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Supplementary Article/Info 2: with anti-squeak plate, with mounting manual
• Material: Low-Metallic
• Test Mark: ECE-R90
• WVA Number: 20098
• Thickness [mm]: 19.5
• Width [mm]: 127.8
• Height [mm]: 50.5
• Manufacturer Restriction: SUMITOMO System
• Manufacturer: BOSCH

• Fitting Position: Front Axle
• Construction Year from: 06.1992
• Quantity per packing unit: 4
• Manufacturer Restriction: AKEBONO
• Wear Warning Contact: not prepared for wear warning indicator
• Test Mark: not mandatory
• Height [mm]: 54.8
• Width [mm]: 170
• Thickness [mm]: 18
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Construction Year from: 09.1994
• Vehicle type: Safari
• Driven Units: Camshaft
• Block Separation:
• Article number of the recommended special tool: STT-1
• Tensile Cord Material: Fiberglass
• Belt Material: HNBR (hydrogenated nitrile butadiene rubber)
• Colour: black
• Number of Teeth: 149
• Width [mm]: 30
• Tooth Pitch [mm]: 9.525
• Length [mm]: 1,419
• Manufacturer: GATES

• Construction Year to: 08.1994
• Driven Units: Camshaft
• Number of Teeth: 149
• Width [mm]: 30
• Belts: with trapezoidal tooth profile
• Manufacturer: JAPKO

• Construction Year from: 09.1994
• Driven Units: Camshaft
• Number of Teeth: 149
• Width [mm]: 30
• Belts: with rounded tooth profile
• Specification: Denti h 3,3 mm, Teeth height 3,3 mm
• Manufacturer: JAPKO

• Construction Year to: 09.1994
• Driven Units: Camshaft
• Block Separation:
• Construction Year from: 09.1993
• Vehicle type: Safari
• Tensile Cord Material: Fiberglass
• Belt Material: HNBR (hydrogenated nitrile butadiene rubber)
• Colour: black
• Number of Teeth: 149
• Width [mm]: 30
• Tooth Pitch [mm]: 9.525
• Length [mm]: 1,419
• Manufacturer: GATES

• Fitting Position: Rear Axle
• Quantity per packing unit: 4
• Width [mm]: 128
• Thickness [mm]: 17
• Height [mm]: 51
• Wear Warning Contact: excl. wear warning contact
• Supplementary Article/Supplementary Info: without accessories
• Brake System: Sumitomo
• Supplementary Article/Info 2: with anti-squeak plate
• WVA Number: 20098
• Manufacturer: BREMBO

• Fitting Position: Rear Axle
• Width [mm]: 127.7
• Height [mm]: 50.5
• Thickness [mm]: 17
• Wear Warning Contact: not prepared for wear warning indicator
• WVA Number: 20098
• Brake System: Sumitomo
• Packaging length [cm]: 15.2
• Packaging width [cm]: 8.8
• Packaging height [cm]: 8.4
• Weight [kg]: 1.2
• Manufacturer: TEXTAR

• Fitting Position: Front Axle
• Article number of recommended accessories: 1987474612, 1987474349
• Product must be determined on the vehicle or the motor:
• Material: Low-Metallic
• Test Mark: ECE-R90
• WVA Number: 20863
• Thickness [mm]: 16.5
• Width [mm]: 131.4
• Height [mm]: 53.3
• Manufacturer Restriction: SUMITOMO System
• Manufacturer: BOSCH

• Filter type: Spin-on Filter
• Supplementary Article/Supplementary Info: with gasket/seal
• Height [mm]: 155
• Outer Diameter [mm]: 93
• Entry Thread Size: M36x1.5
• Exit Thread Size: 3/4-16 UNF
• Gasket inside diameter [mm]: 62
• Gasket outside diameter [mm]: 71
• SVHC: No SVHC present!
• Manufacturer: MANN+HUMMEL

• Fitting Position: Rear Axle
• Diameter [mm]: 300
• Width [mm]: 62
• Manufacturer: ASHIKA

• Fitting Position: Rear Axle
• Diameter [mm]: 300
• Width [mm]: 62
• Manufacturer: JAPKO

• Braking/Driving Dynamics: for vehicles without ABS
• Vehicle type: Patrol GR
• Fitting Position: Rear Axle
• Inner brake drum diameter [mm]: 295
• Width [mm]: 63
• Weight [kg]: 3.81
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Construction Year to: 07.1995
• Quantity per packing unit: 4
• Manufacturer Restriction: AKEBONO
• Inner brake drum diameter [mm]: 295
• Width [mm]: 60
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Number of Teeth 1: 149
• Width 1 [mm]: 30
• Manufacturer: ASHIKA

• Construction Year to: 08.1994
• Number of Teeth 1: 149
• Width 1 [mm]: 30
• Manufacturer: JAPKO

• Driven Units: Camshaft
• Vehicle configuration line / variant: >09/94
• Number of Teeth: 149
• Width [mm]: 30
• Length [mm]: 1,419
• Full Set:
• Number of belts: 1
• Pulleys contained: 2
• Weight [kg]: 0.8
• Manufacturer: DAYCO
• Name: DA KTB378

• Number of Teeth 1: 149
• Width 1 [mm]: 30
• Manufacturer: JAPKO

• Number of belts: 1
• Number of track rollers: 2
• Width 1 [mm]: 30
• Number of Teeth: 149
• Manufacturer: SNR /NTN-SNR/
• Name: SN KD468.05

• Construction Year to: 09.1994
• Width [mm]: 30
• Number of Teeth: 149
• Belts: with rounded tooth profile
• Weight [kg]: 1.1
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Driven Units: Camshaft
• Vehicle configuration line / variant: 09/94>
• Number of Teeth: 149
• Width [mm]: 30
• Length [mm]: 1,419
• Full Set:
• Number of belts: 1
• Pulleys contained: 2
• Weight [kg]: 0.8
• Name: DA KTB682
• Manufacturer: DAYCO

• Construction Year to: 09.1994
• for model code: Y60A
• Belt Width [mm]: 30
• Colour: black
• Number of Teeth: 149
• Belts: with rounded tooth profile
• Name: SK VKMA92500
• Manufacturer: SKF

• Construction Year from: 10.1994
• for model code: Y60
• Belt Width [mm]: 30
• Colour: black
• Number of Teeth: 149
• Belts: with rounded tooth profile
• Manufacturer: SKF
• Name: SK VKMA92518

• Number of belts: 1
• Number of track rollers: 2
• Width 1 [mm]: 30
• Number of Teeth: 149
• Manufacturer: SNR

• Number of Teeth 1: 149
• Width 1 [mm]: 30
• Manufacturer: JAPKO

• Construction Year from: 09.1994
• Weight [kg]: 1.08
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Construction Year to: 05.1995
• Vehicle type: Patrol GR
• Driven Units: Camshaft
• Packaging length [cm]: 26.5
• Packaging width [cm]: 16.5
• Packaging height [cm]: 9.5
• Weight [kg]: 0.837
• Number of Teeth: 149
• Width [mm]: 30
• Manufacturer: CONTITECH
• Additional information: CT786K1
• Lisainfo: CT786K1

• Construction Year from: 09.1994
• Vehicle type: Safari
• Driven Units: Camshaft
• Block Separation:
• Article number of the recommended special tool: STT-1
• Supplementary Article/Supplementary Info: without water pump
• Manufacturer: GATES-ZESTAWY
